Intelligent Cordless Screwdriver

XYD is a factory with a specialization in the production of Intelligent Cordless Screwdrivers. The Intelligent Cordless Screwdrivers adopt a closed-loop servo motor controller with higher accuracy up to ± 3% and 10 million times tightening life span even under low speed tightening situation.

Model:YM-ZN-025

Send Inquiry

Product Description

XYD was founded in 2003 and we are manufacturer and supplier specializing in the production and sales of Intelligent Cordless Screwdriver. We adhere to the concept of honest management, continue to create value for customers, and are committed to building the best quality Intelligent Cordless Screwdriver factory in China.

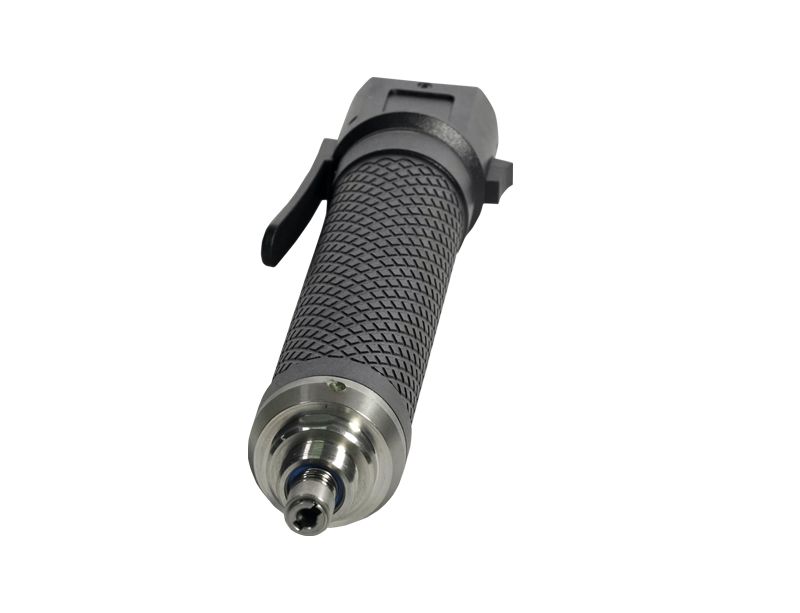

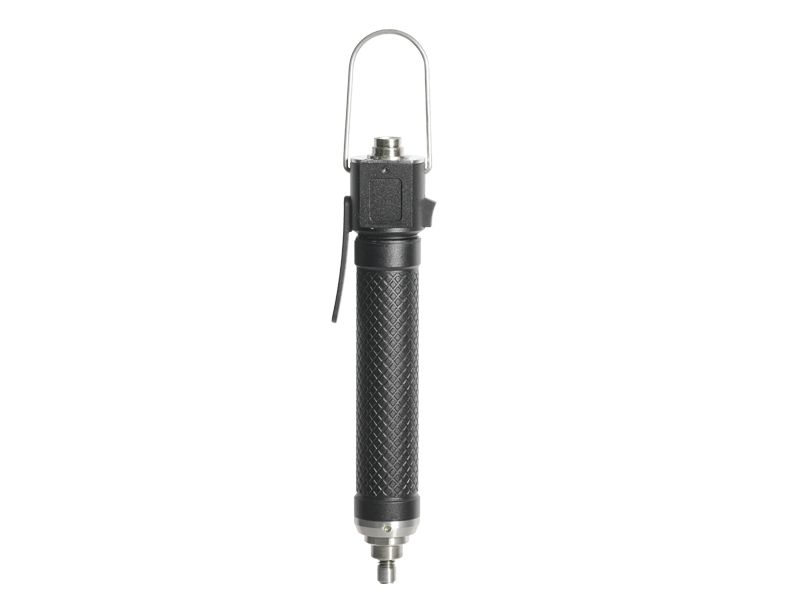

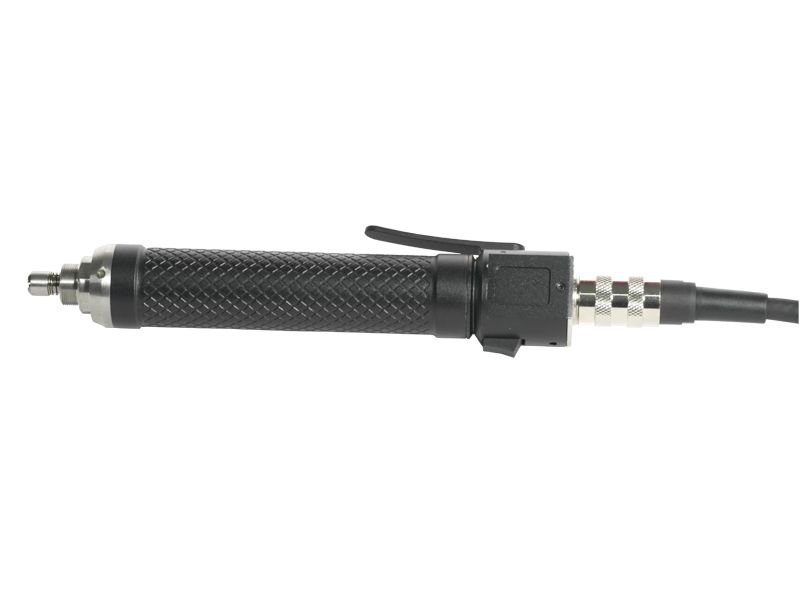

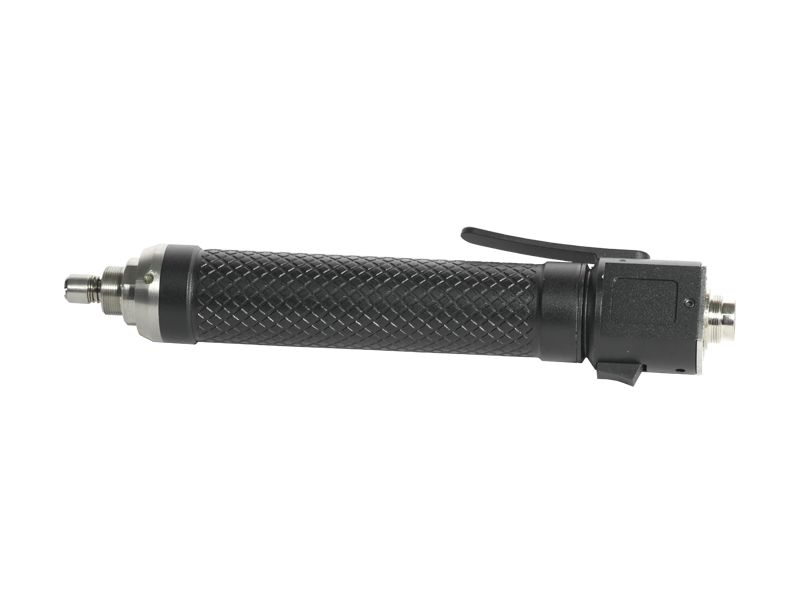

In-Line Torque YM-ZN-025 DC24V5A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S01001000200001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: Intelligent Cordless Screwdriver

The Power Of Motor：DC24v5A

Speed：20-1000rpm

Rated Torque：0.05-0.25N.m

Bit Type：Half-moon/Hios

Accessories: Controller,Power Adapter，Cable

Features

• Adopting a closed-loop servo motor controller with higher accuracy up to ± 3% and 10 million times tightening life span even under low speed tightening situation.

• Concisely designed structure and directly connecting motor to save maintenance labor cost

• Multiple product series choices

• Equipped with an angle encoder to allow more flexible rotation need.

• Adopting current sensing method to achieve reverse and unlocking screw data recording

• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.

Specifications

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	197	28	0.33
YM-ZN-025	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	215	30	0.53
YM-ZN-050	YM-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	222	33	0.67
YM-ZN-120	YM-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	241	30	0.65
YM-ZN-150	YM-2448-10	HEX 6.35	5.00-15.00	0.50-1.5	4.50-13.50	50-800	247.5	34	0.84
YM-ZN-250		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	247.5	34	0.84
YM-ZN-600		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	247.5	34	0.89
YM-ZN-800		HEX 6.35	30.00-80.00	3.00-8.00	27.00-72.00	50-600	247.5	34	0.89
YM-ZN-1000		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	294.5	35	1.14
YM-ZN-1500		HEX 6.35	100.00-150.00	10.00-15.00	90.00-135.00	50-400	303.5	35	1.50
