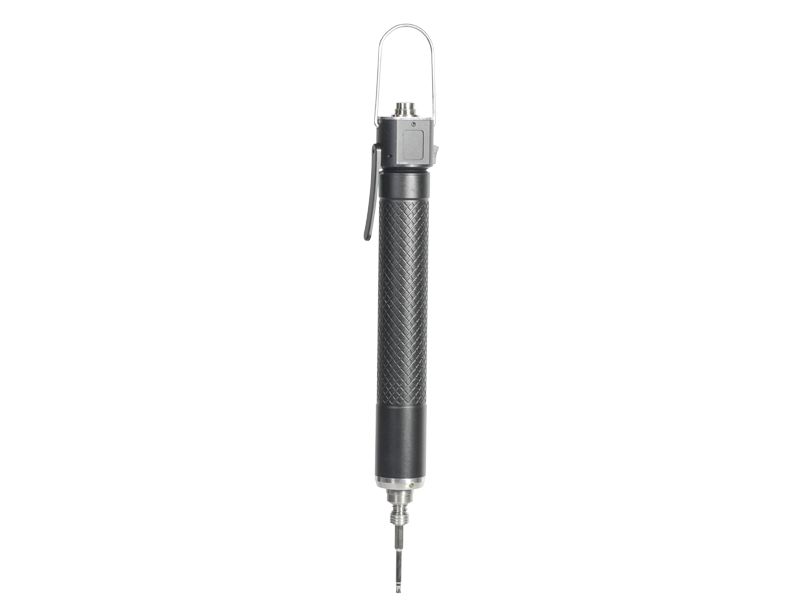

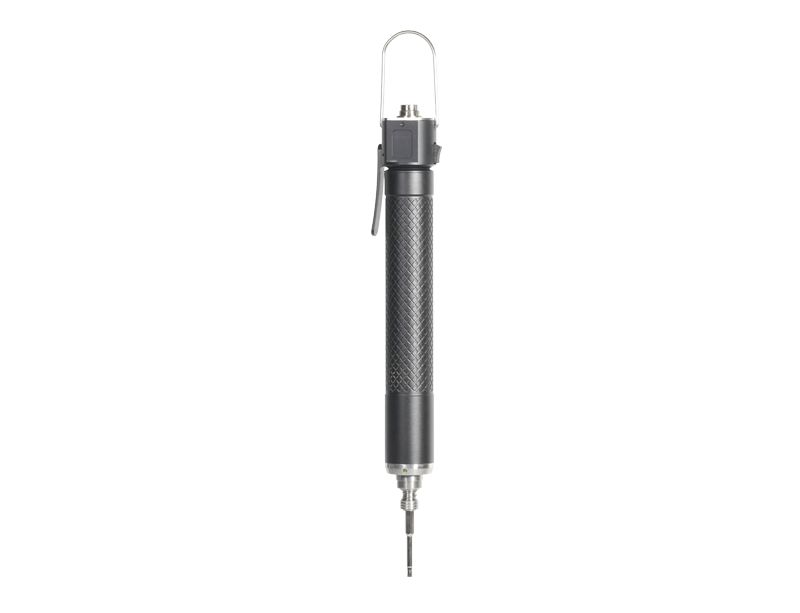

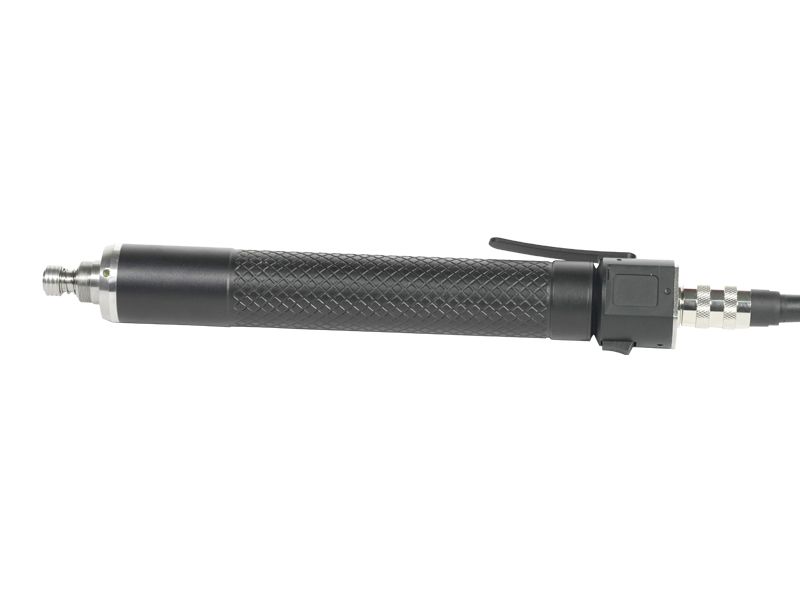

Multi-function Electric Screwdriver

XYD's high-quality multi-function electric screwdriver combines advanced technology with superior craftsmanship, offering users a versatile and reliable tool for various applications. The precision engineering and attention to detail in its design ensure a top-notch performance, making it a go-to choice for tasks that demand accuracy and efficiency.

Model:YM-ZN-1000

Send Inquiry

Product Description

XYD is a brand that focuses on Multi-function Electric Screwdriver production and quality control. We have our own factory in China, and sales team.We are committed to providing customers with diversified Multi-function Electric Screwdriver and professional customized services.These screwdrivers integrate smart features to improve precision, efficiency, and user experience.

In-Line Torque YM-ZN-1000 DC48V10A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S01001000900001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: Multi-function Electric Screwdriver

The Power Of Motor：DC48V(10A)

Speed：50-400rpm

Rated Torque：5.00-10.00N.m

Bit Type：HEX 6.35

Accessories: Controller, Power Adapter，Cable

Features

• Adopting a closed-loop servo motor controller with higher accuracy up to ± 10% and 10 million times tightening life span even under low speed tightening situation.

• Concisely designed structure and directly connecting motor to save maintenance labor cost

• Multiple product series choices

• Equipped with an angle encoder to allow more flexible rotation need.

• Adopting current sensing method to achieve reverse and unlocking screw data recording

• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.

Specifications

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	197	28	0.33
YM-ZN-025	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	215	30	0.53
YM-ZN-050	YM-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	222	33	0.67
YM-ZN-120	YM-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	241	30	0.65
YM-ZN-150	YM-2448-10	HEX 6.35	5.00-15.00	0.50-1.5	4.50-13.50	50-800	247.5	34	0.84
YM-ZN-250		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	247.5	34	0.84
YM-ZN-600		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	247.5	34	0.89
YM-ZN-800		HEX 6.35	30.00-80.00	3.00-8.00	27.00-72.00	50-600	247.5	34	0.89
YM-ZN-1000		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	294.5	35	1.14
YM-ZN-1500		HEX 6.35	100.00-150.00	10.00-15.00	90.00-135.00	50-400	303.5	35	1.50
