Screwdriver With Smart Controller

XYD is a Screwdriver With Smart Controller manufacturer and supplier to customers worldwide. We have advanced and mature equipment and an excellent team that focuses on cooperation. The goal is to promote XYD Screwdriver With Smart Controller to the world and let the world see the power of Made in China.

Model:YM-ZN-025NLK

Send Inquiry

Product Description

Smart screwdrivers have sensors that can measure the torque applied during screwing. This information can be displayed on the app, allowing for precise control and adjustment.Users can customize torque settings, speed, and other parameters through the app, tailoring the tool to specific tasks or materials.

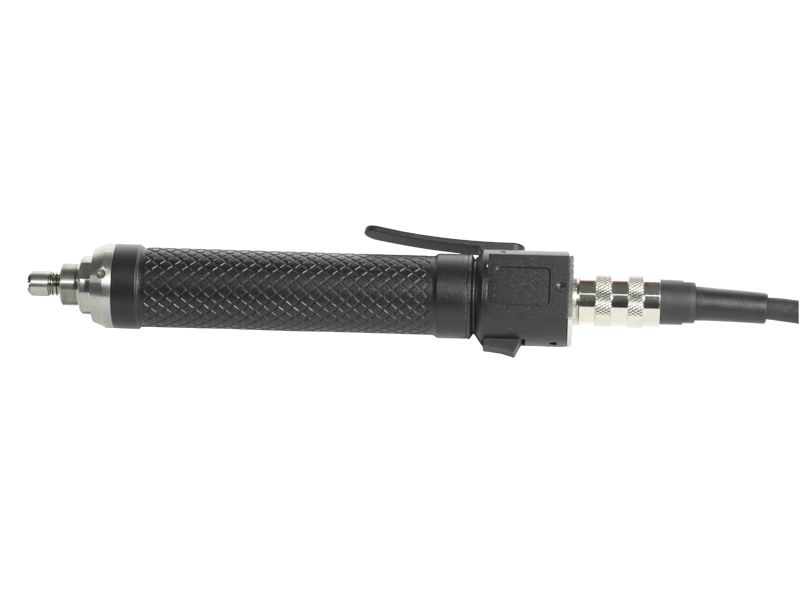

In-Line Torque YM-ZN-025NLK DC24V5A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S01002000200001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: Screwdriver With Smart Controller

The Power Of Motor：DC24v5A

Speed：20-1000rpm

Rated Torque：0.05-0.25N.m

Bit Type：Half-moon/Hios

Accessories: Controller,Power Adapter，Cable

Features

• Adopting a closed-loop servo motor controller with higher accuracy up to ± 3% and 10 million times tightening life span even under low speed tightening situation.

• Concisely designed structure and directly connecting motor to save maintenance labor cost

• Multiple product series choices

• Equipped with an angle encoder to allow more flexible rotation need.

• Adopting current sensing method to achieve reverse and unlocking screw data recording

• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.

Specifications

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008NLK	YM-DNC-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	197	28	0.33
YM-ZN-025NLK	YM-DNC-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	215	30	0.53
YM-ZN-050NLK	YM-DNC-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	222	33	0.67
YM-ZN-120NLK	YM-DNC-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	241	30	0.65
YM-ZN-150NLK	YM-NDC-2448-10	HEX 6.35	5.00-15.00	0.500-1.5	4.50-13.50	50-800	247.5	34	0.84
YM-ZN-250NLK		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	247.5	34	0.84
YM-ZN-600NLK		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	247.5	34	0.89
YM-ZN-800NLK		HEX 6.35	30.00-80.00	3.00-8.00	27.00-72.00	50-600	247.5	34	0.89
YM-ZN-1000NLK		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	294.5	35	1.14
YM-ZN-1500NLK		HEX 6.35	100.00-150.00	10.00-15.00	90.00-135.00	50-400	303.5	35	1.50
