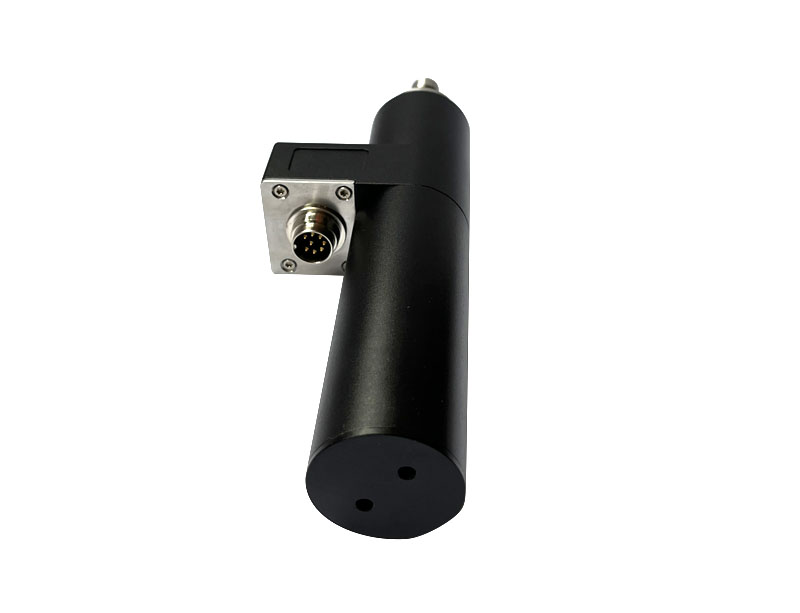

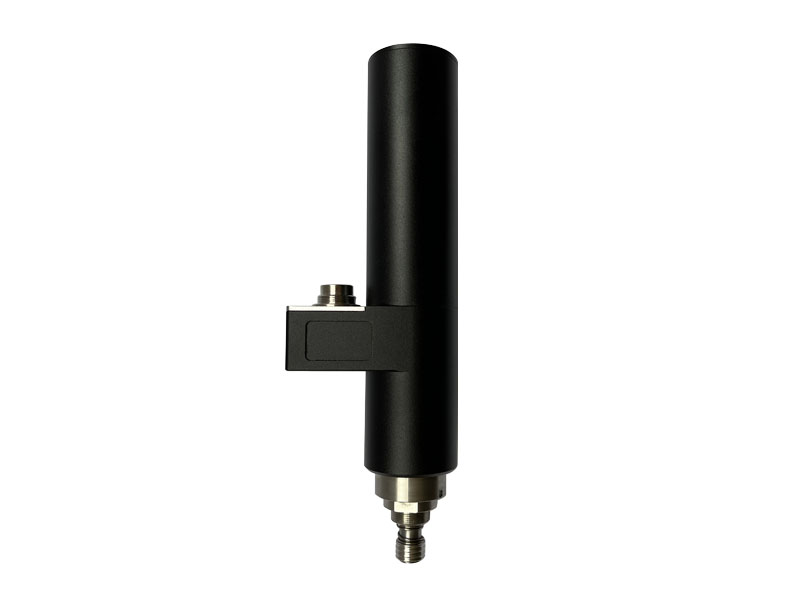

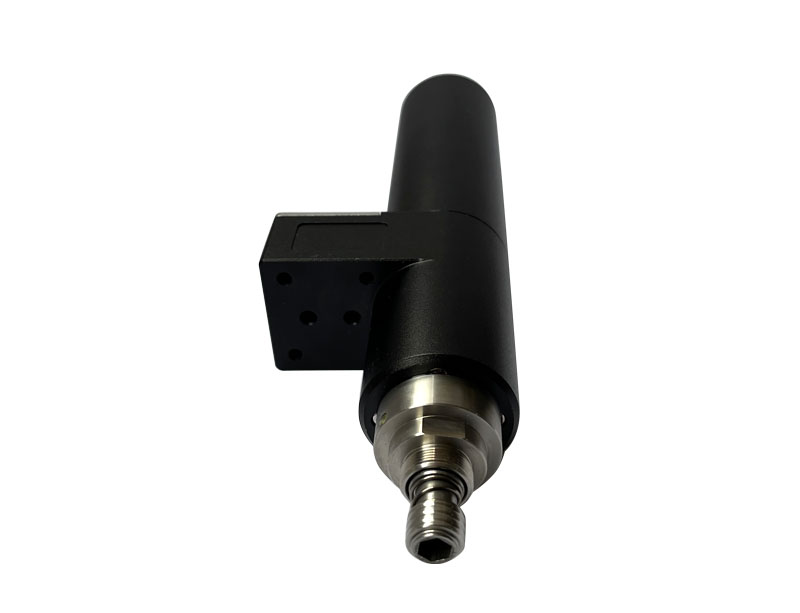

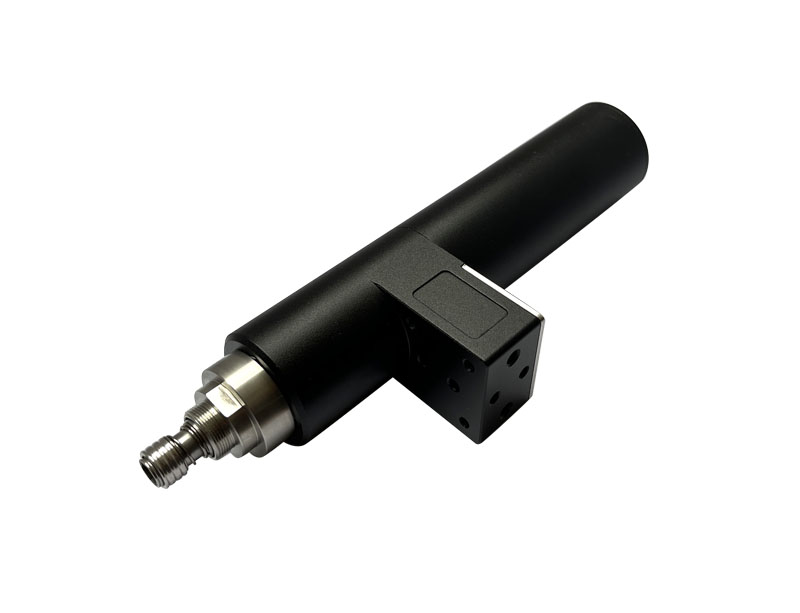

Wide Torque Range Smart Electric Screwdriver

The high quality wide torque range smart electric screwdriver is a versatile tool designed to cover a broad spectrum of torque requirements. With its intelligent features, this electric screwdriver is capable of adjusting and delivering precise torque across a wide range of applications.

Model:YM-250-ATU

Send Inquiry

Product Description

Wide Torque Range Smart Electric Screwdriver offers flexibility and adaptability, making it suitable for various fastening tasks with differing torque specifications. This tool is ideal for environments where a single screwdriver is needed to handle a diverse range of assembly requirements, providing efficiency and convenience in operations.

Fixed Smart Screwdriver YM-250-ATU DC48V10A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S02001000600001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: Wide Torque Range Smart Electric Screwdriver

The Power Of Motor：DC48V10A

Speed：50-800rpm

Rated Torque：1.00-2.50N.m

Bit Type：HEX 6.35

Accessories:Controller, Power Adapter，Cable

Fixed Installation: The fixed structure design facilitates automated installation.

High precision: The angle sensor and advanced algorithm used in the screwdriver can accurately detect and record the rotation angle of the screws being tightened. This high-precision detection and control function ensures precise tightening of screws to meet the requirements in different assembly applications from various industries.

Angle sensing: The Wide Torque Range Smart Electric Screwdriver is equipped with angle sensors that can monitor the rotational angle in real-time during tightening process. It provides real-time feedback and indications, ensuring users can precisely control and adjust the tightening process of the screws. Angle sensing technology greatly enhances the accuracy and consistency of operations.

Torque feedback: The torque feedback function allows users to accurately perceive the torque force and automatically stop when reaching the predetermined torque. This ensures proper screw tightening so as to improve the quality and efficiency of assembly and maintenance work.

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-008-ATU	YMAT-NDC-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	140.5	28	0.35
YM-025-ATU	YMAT-NDC-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	180.5	34	0.60
YM-050-ATU	YMAT-NDC-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	184	36	0.61
YM-120-ATU	YMAT-NDC-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	210.2	34	0.70
YM-150-ATU	YMAT-NDC-2448-10	HEX 6.35	5.00-15.00	0.500-1.5	4.50-13.50	50-800	199.6	38	0.86
YM-250-ATU	YMAT-NDC-2448-10	HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	199.6	38	0.86
YM-600-ATU	YMAT-NDC-2448-10	HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	209.6	38	0.90
YM-1000-ATU	YMAT-NDC-2448-10	HEX 6.35	50.00-100.00	5.00-10.00	45.00-190.00	50-400	242.6	38	1.15
